Servo motors play a crucial role in various applications, ranging from military robotics to metal fabrication. These motors enable precise motion control in closed-loop systems, making them ideal for industrial and commercial use. In this article, we will explore what servo motors are, how they work, and their unique features and applications. So, let’s dive in and broaden our knowledge of motion control.
Contents
Servo Motor Basics
Servo motors are self-contained electrical devices that provide highly efficient and precise rotational motion. Unlike regular motors, servo motors can move their output shaft to a specific angle, position, and velocity. They consist of several components, including a control circuit, servo motor, shaft, amplifier, and an encoder or resolver for positional feedback.
Components of a Servo Motor
The control circuit is a vital part of the servo motor and is specifically designed for this purpose. It receives electric signals, either analog or digital, to determine the amount of movement required for the shaft. The servo motor’s rotational or linear speed and position are controlled based on this input.
An encoder, serving as a sensor, provides speed and position feedback to the motor. This feedback is crucial for the closed-loop mechanism of the servo motor, ensuring precise control over its movements. The encoder is integrated into the motor housing and is often coupled with a gear system.
Types of Servo Motors
Servo motors come in different types based on their applications, including AC servo motors and DC servo motors. Three main considerations differentiate these motors: current type, commutation type, and the rotor’s rotating field.
Current Type: AC or DC
AC and DC serve as the basic classification for servo motors based on the type of current they use. AC motors utilize the frequency of the applied voltage and the number of magnetic poles to determine their speed. On the other hand, DC motors’ speed is directly proportional to the supply voltage with a constant load. While both types are used in servo systems, AC motors are more commonly used in applications requiring high precision and repetitions, such as robotics and industrial automation.
Commutation Type: Brushed or Brushless
Servo motors can be commutated mechanically using brushes or electronically without brushes. Brushed motors, commutated with brushes and a commutator, are simpler and less expensive to operate. In contrast, brushless motors are more reliable, efficient, and less noisy. They achieve commutation electronically, usually through the use of Hall effect sensors or encoders. While most servo motors are AC brushless designs, some applications still employ brushed permanent magnet DC motors.
Rotating Field: Synchronous or Asynchronous
AC servo motors can have a synchronous or asynchronous rotating field. Synchronous motors have a rotor that rotates at the same speed as the stator’s rotating magnetic field. Asynchronous motors, commonly known as induction motors, have a rotor that rotates at a speed slower than the stator’s field. However, the speed of an asynchronous motor can be varied by changing the number of poles or the frequency. The rotating field classification is mainly relevant to AC motors.
Working Principles of Servo Motors

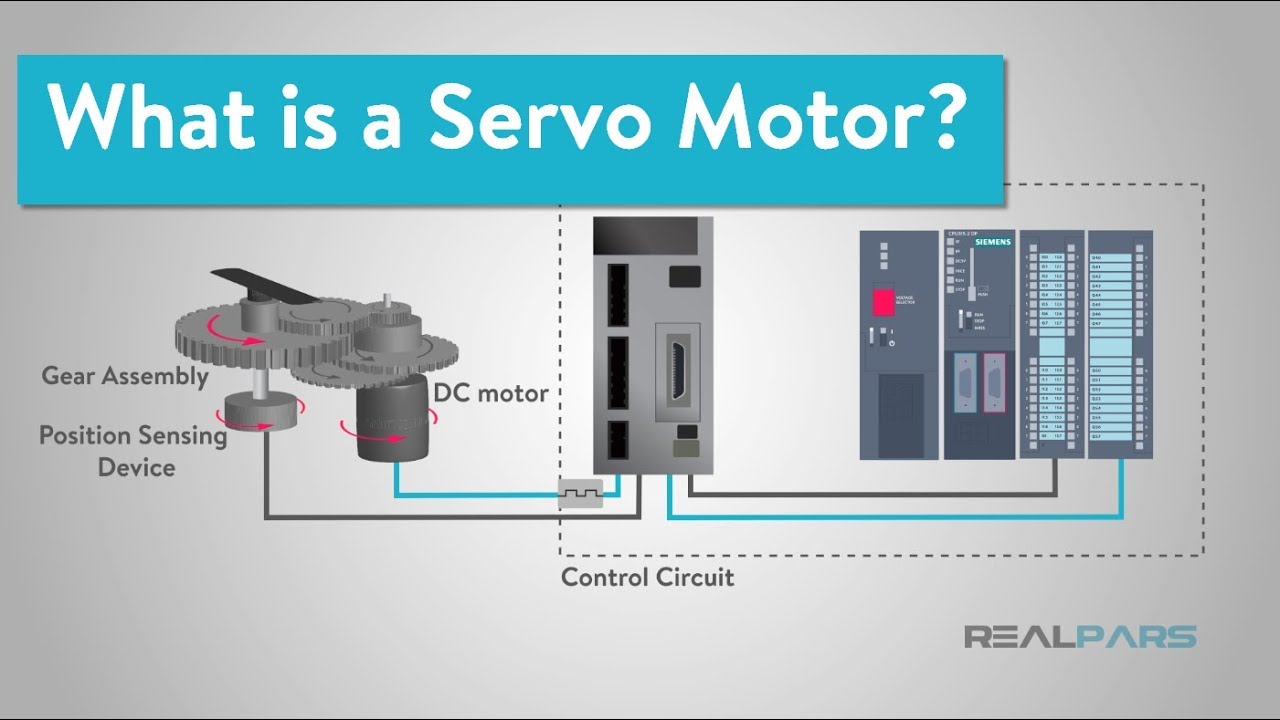

Servo motors operate based on the interplay of several major components, including a DC motor, a position sensing device, a gear assembly, and control circuitry. Let’s briefly explore how DC and AC servo motors work.
DC Servo Motors
The desired speed of a DC servo motor is determined by the applied voltage. To control the motor speed, a potentiometer produces a voltage that serves as an input to an error amplifier. In digital control systems, a PLC or motion controller generates pulses with specific duty cycles to achieve more accurate control. A feedback sensor, usually a potentiometer, provides a voltage representing the motor’s position, which is compared to the desired position. Based on the error, the amplifier adjusts the armature voltage to rotate the motor until the error becomes zero.
AC Servo Motors
AC servo motors can be categorized into synchronous and asynchronous types. Synchronous motors have a stator and rotor, with the rotor following the rotating magnetic field generated by the stator. As a result, the rotor’s speed is synchronized with the stator’s field. On the other hand, asynchronous (induction) motors have a different construction. The stator produces a rotating magnetic field, and the relative speed between the stator field and rotor conductors induces an electromagnetic force in the rotor. The rotor’s speed lags behind the stator’s rotating field, creating an asynchronous motion.
Applications of Servo Motors
Servo motors find applications in various industrial and commercial systems and products. They are commonly used in robotics, where precise control over each joint’s angle is essential for proper movement. Similarly, servo motors are incorporated into camera autofocus systems to precisely adjust the lens position for sharper images. Antenna positioning systems, like those used in radio astronomy, also rely on servo motors to control both azimuth and elevation axis movements.
FAQs
Q: What are the main components of a servo motor?
A: The main components of a servo motor include a control circuit, servo motor, shaft, amplifier, and an encoder or resolver for feedback.
Q: What distinguishes AC and DC servo motors?
A: AC servo motors are typically used in applications requiring high precision and repetitions, while DC servo motors are known for their simplicity and lower cost.
Q: How do servo motors work?
A: Servo motors operate in closed-loop systems, where the control circuit receives an electric signal to determine the desired movement. The motor’s position and speed are continuously adjusted based on feedback from the sensor.
Q: What are the different types of servo motors?
A: Servo motors can be classified based on their current type (AC or DC), commutation type (brushed or brushless), and the rotor’s rotating field (synchronous or asynchronous).
Q: What are the applications of servo motors?
A: Servo motors are widely used in robotics, camera autofocus systems, antenna positioning systems, and various industrial automation applications.
Conclusion
Servo motors offer precise and efficient motion control in closed-loop systems. Understanding their basics, types, and working principles is essential for anyone involved in motion control projects or interested in the field of automation. By harnessing the capabilities of servo motors, we can enhance the performance and precision of various industrial and commercial processes.
To explore further topics in motion control and PLC programming, visit Techal. Stay tuned for more informative and engaging content to empower your knowledge in the world of technology.
