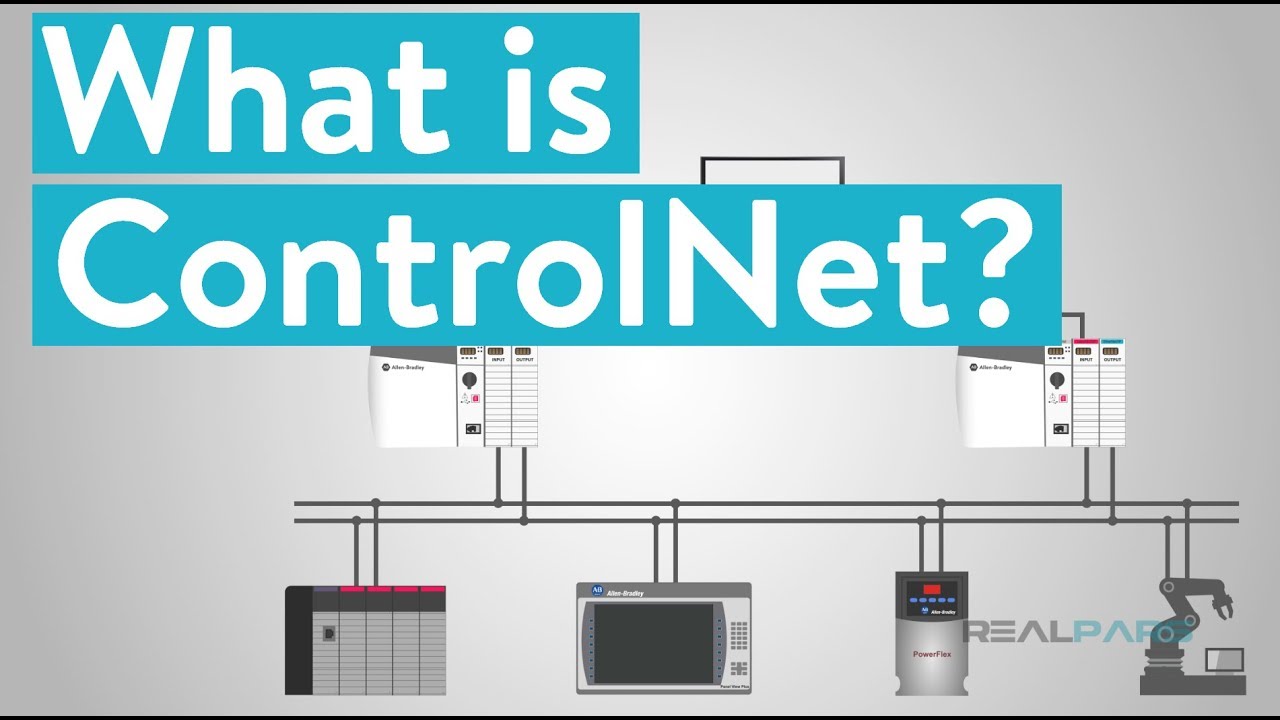

Are you in search of an efficient solution for seamless communication within your industrial network? Look no further than ControlNet. In this article, we will delve into the intricacies of ControlNet, an open industrial network protocol that offers reliable and high-speed control and I/O data transfer.
Contents
- The Basics of ControlNet
- Devices Supported by ControlNet
- Data Transfer Rate and Comparison with Other Networks
- Physical Media of ControlNet
- Network Design and Physical Media
- Token-Passing Bus Control Network
- ControlNet’s Data Link Layer and Messaging
- Advantages and Disadvantages of ControlNet
- FAQs
- Conclusion
The Basics of ControlNet
ControlNet, managed by the ODVA (formerly known as the Open DeviceNet Vendors Association), is based on a token-passing bus control network. It employs the Common Industrial Protocol (CIP) for the upper layers of the OSI model, including transport, network, data link, and physical layers. ControlNet was specifically designed to cater to the needs of industrial control systems, ensuring precise timing for control and I/O data transfer.
Devices Supported by ControlNet
ControlNet is compatible with various devices commonly used in industrial settings, including Programmable Logic Controllers (PLCs), I/O chassis, HMIs, personal computers, drives, and robots. It is particularly useful for redundant applications and applications that require scheduled communications.
Data Transfer Rate and Comparison with Other Networks
With a data transfer rate of 5 Mbps, ControlNet falls in the mid-range among popular industrial networks. In comparison, EtherNet/IP offers speeds ranging from 10 Mbps to 1 Gbps, while DeviceNet ranges from 125 to 500 Kbps.
Physical Media of ControlNet
ControlNet utilizes RG-6 coaxial cables with BNC connectors. These connectors come in two types: twist-on and locking, or screw threaded for more rugged environments. The choice of cable type, such as flexible, direct burial, or plenum rated, depends on the specific application and environment. In certain cases, optical fiber may be used for longer distances. ControlNet cables can cover a maximum distance of 1000 meters, which can be extended using repeaters. A maximum of 5 repeaters (or 10 for redundant networks) can be employed without affecting the maximum number of nodes.
Network Design and Physical Media
When designing a ControlNet network, you have several topology options to choose from: trunkline-dropline, star, or tree. Additionally, various physical media components are used in ControlNet network design, such as taps, terminating resistors, segments, repeaters, and bridges. Taps allow you to connect nodes to the trunk via a drop cable, and terminating resistors are required at each end of the trunk cable. Segments consist of trunk cable and taps with terminating resistors. Repeaters can be used to extend the ControlNet network by connecting them between segments. Bridges facilitate communication between networks without affecting I/O.
Token-Passing Bus Control Network
ControlNet functions based on a token-passing bus control network. Each node in the network is assigned a MAC ID address from 1 to 99 and knows the address of its predecessor and successor. The token, acting as a logical “token ring,” is passed along the coaxial cable. When a node possesses the token, it transmits data frames until it completes its transfer or the token reaches its time limit. A new token is then created and passed on to the next logical successor. The process continues until all the nodes have cycled through the logical circle.
ControlNet’s Data Link Layer and Messaging
The data link layer in ControlNet is responsible for timing control. ControlNet utilizes the Network Update Time (NUT) to define the timing cycle. The NUT can be set to a duration of 2 to 100 milliseconds and consists of three major parts: scheduled, unscheduled, and guard band. In terms of messaging, ControlNet offers two forms: unconnected and connected messaging. Unconnected messaging is used during connection establishment or for low-priority messages. Connected messaging, on the other hand, encompasses frequent explicit messages or real-time I/O data.
Advantages and Disadvantages of ControlNet
ControlNet offers several advantages in industrial applications. It provides high-speed and deterministic data transfer, supports strict scheduling, and offers built-in redundancy. ControlNet networks are known for their stability and reliability. However, it is important to note that the hardware costs may be higher, and troubleshooting can be more challenging compared to other protocols. When properly set up, ControlNet can deliver exceptional stability and reliability with minimal maintenance requirements.
FAQs
Q: Where can I learn PLC programming in an easy-to-understand format?
A: For comprehensive PLC programming resources that are easy to understand and will take your career to the next level, head on over to Techal.
Conclusion
ControlNet is a robust and efficient industrial network protocol that enables seamless communication within industrial control systems. With its reliable and high-speed data transfer capabilities, ControlNet is a valuable solution for a wide range of applications. By leveraging the power of ControlNet, you can enhance the productivity and efficiency of your industrial network.
